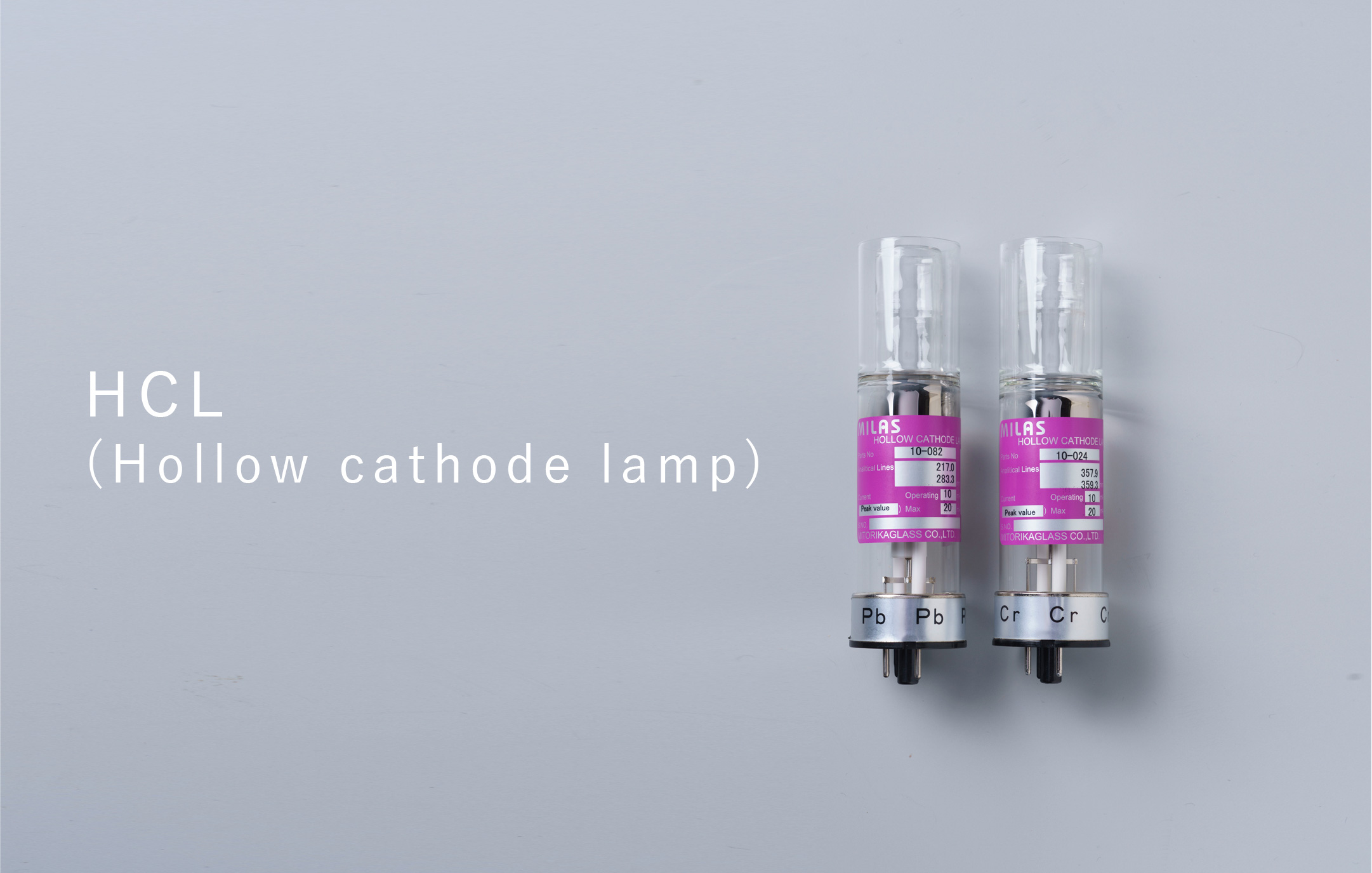

HCL (Hollow cathode lamp)

HCL is a base line spectral lamp.
We have 60 types HCLs including single element and multiple elements. These lamps are used for atomic absorption spectrophotometer of major manufacturers.

HCL (Hollow cathode lamp)

HCL

Construction

HCL line-up list 50 single element + 10 multiple elements (60 types in total)

Outer diameter	38mm
Product life	5000mA/Hrs *Hrs As、Se、Ga : 3000mA Calculation: 5000mAHrs / Current value used = Product life

Lineup

Product No	Element name	Analysis line (nm)	Product No	Element name	Analysis line (nm)
10-047	AG	328.1 338.3	10-042	Mo	313.3 317.0
10-013	Al	309.3 396.2	10-011	Na	589.0 330.2
10-033	As	193.7 197.2	10-041	Nb	334.9 358.0
10-079	Au	242.8 267.6	10-028	Ni	232.0 341.5
10-005	B	249.8	10-082	Pb	217.0 283.3
10-056	Ba	350.1 553.6	10-046	Pd	244.8 247.6
10-004	Be	234.9	10-078	Pt	265.9 299.8
10-083	Bi	223.1 306.8	10-045	Rh	343.5 369.2
10-020	Ca	422.7	10-044	Ru	349.9 392.5
10-048	Cd	228.8 326.1	10-051	Sb	217.6 231.2
10-027	Co	240.7 352.7	10-021	Sc	391.2 390.7
10-024	Cr	357.9 359.3	10-034	Se	196.0 204.0
10-029	Cu	324.8 327.4	10-014	Si	251.6 288.2
10-026	Fe	248.3 372.0	10-050	Sn	224.6 286.3
10-031	Ga	294.4 417.2	10-038	Sr	460.7
10-032	Ge	265.2 259.3	10-073	Ta	271.5 277.6
10-072	Hf	307.3 286.6	10-052	Te	214.3 225.9
10-080	Hg	253.7	10-022	Ti	364.3 365.3
10-049	In	303.9 325.6	10-081	Tl	276.8 377.6
10-077	Ir	208.9 264.0	10-023	V	318.4 385.6
10-019	K	766.5 404.4	10-074	W	255.1 400.9
10-057	La	550.1 357.4	10-039	Y	410.2 407.7
10-003	Li	670.8 610.4	10-070	Yb	398.8 346.4
10-012	Mg	285.2 202.5	10-030	Zn	213.9 307.6
10-025	Mn	279.5 403.1	10-040	Zr	360.1 468.8

(Multiple elements)

Product No	Element name	Analysis line (nm)
10-101	Ca-Mg	Ca 422.7 Mg 285.2
10-102	Cd-Pb	Cd 228.8 Pb 283.3
10-103	Cd-Zn	Cd 228.8 Zn 213.9
10-104	Cu-Fe-Mn	Cu 324.8 Fe 248.3 Mn279.5
10-105	Cu-Mn-Si	Cu 324.8 Mn 279.5 Si 251.6
10-106	Cu-Fe-Ni	Cu 324.8 Fe 248.3 Ni 232.0
10-107	Fe-Mn-Ni	Fe 248.3 Mn 279.5 Ni 232.0
10-108	Cr-Cu-Mn	Cr 357.9 Cu 324.8 Mn 279.5
10-109	Cr-Cu-Fe-Mn-Ni	357.9-324.8-248.3-279.5-232.0
10-110	Co-Cr-Cu-Fe-Mn-Ni	240.7-357.9-324.8-248.3-279.5-232.0
